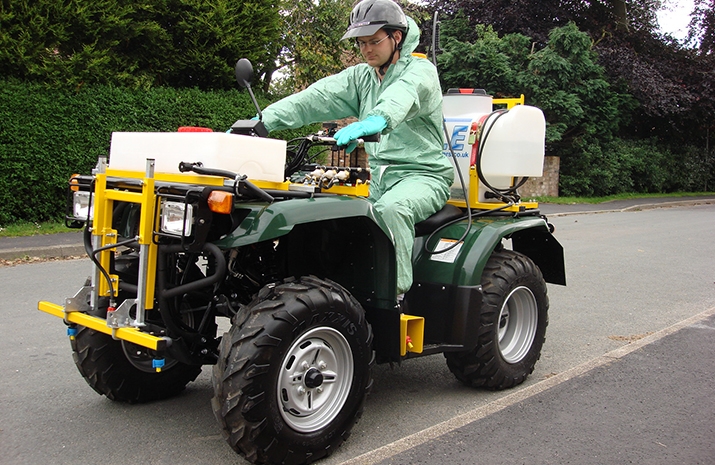

ATV quad bike mounted Weed Sprayer: VALE PKL350

The PKL weed spraying system from VALE Engineering is generally considered to be the number 1 system for weed control on the public highway. Used by contractors and councils alike, this weed spraying system quickly became popular after its launch in 2000. This was due to the PKL weed spraying system’s efficient treating of weedsquickly and cost effectively. The ATV quad bike mounted Weed Sprayer VALE PKL350 has been developed alongside relevant legislation, health & safety best practice and all relevant codes of practice. This ensures weed control operatives are compliant when using the VALE PKL350.

The ATV quad bike mounted Weed Sprayer VALE PKL350 fully conforms to current British and European Standards for spraying equipment, with the ability to spot treat in line with best practice techniques. Most importantly, the control of the spray can be done with both hands on the handlebars. With over 500 units manufactured, the ATV quad bike mounted Weed Sprayer VALE PKL350 is now an important part of the VALE hire fleet of over 70 machines available to hire. Mounted to the Yamaha 350 ATV, this quad bike mounted weed sprayer VALE PKL350 has proved to be the ultimate solution for the ‘war on weeds’.

With the launch of the new VALE PKL450, the ATV quad bike mounted Weed Sprayer VALE PKL350 will be phased out in time, although a limited quantity of the VALE PKL350 are still available to purchase new from VALE Engineering whilst stocks last. These are backed by the company’s spare parts and servicing departments.


Fully automatic transmission (Ultramatic®)

348cc oil/air-cooled single cylinder engine

Selectable Two / Four-wheel drive

Double A-Arm front suspension

Push-button electric start

Reliable, low-maintenance shaft drive

Rear rack capacity: 80kgs

Front rack capacity: 40kgs

Fuel tank capacity: 13.5 litres

Full road lighting kit registered as an agricultural machine

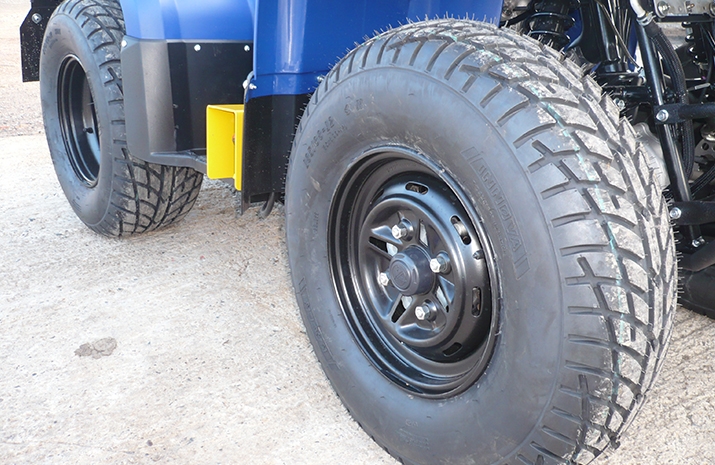

E marked road legal tyres

Polypropylene sprayer tank with a 70-litre capacity fitted with a basket filter and baffle

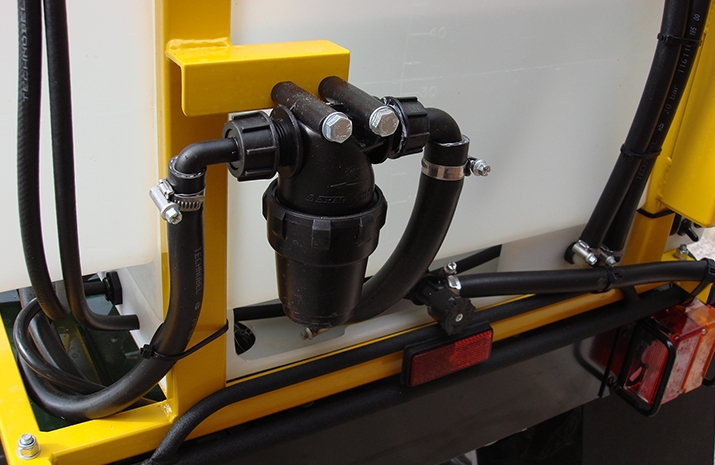

Full filtration system

Full pressure control and agitation

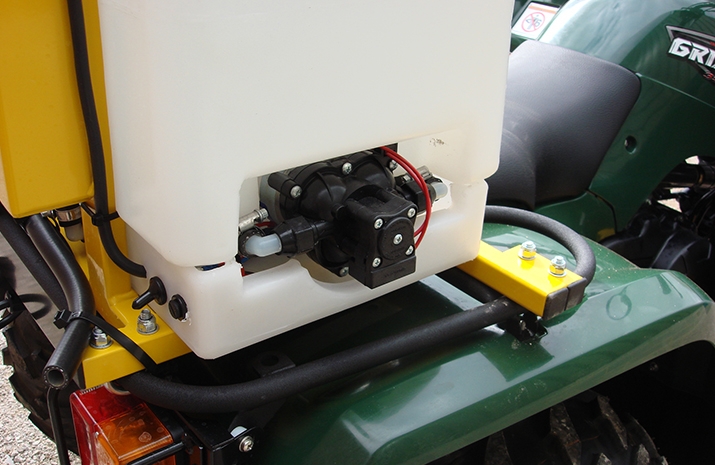

11.3 litre/min pump

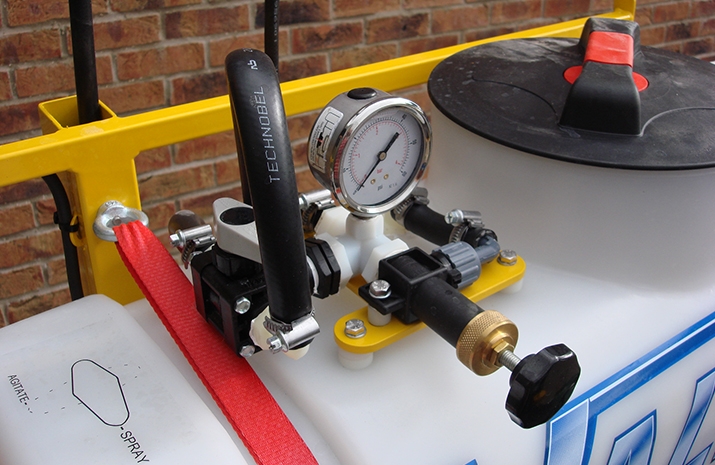

Glycerine pressure gauge

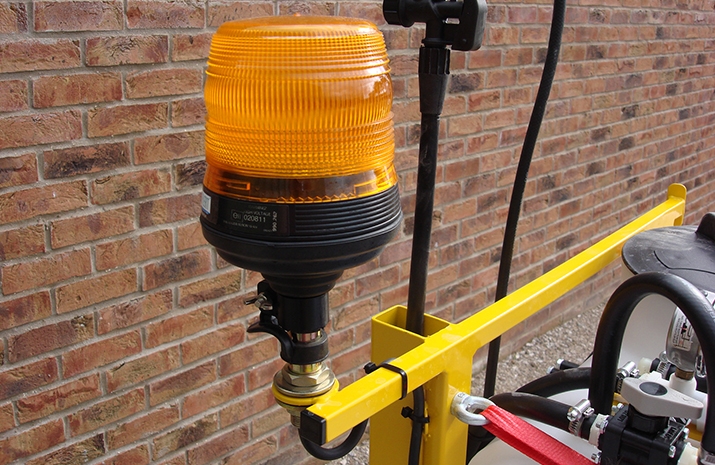

Flashing amber beacon (xenon type)

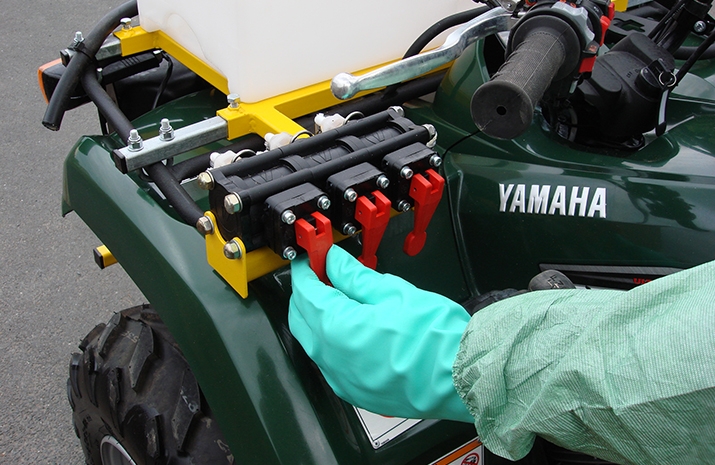

Front mounted control valves

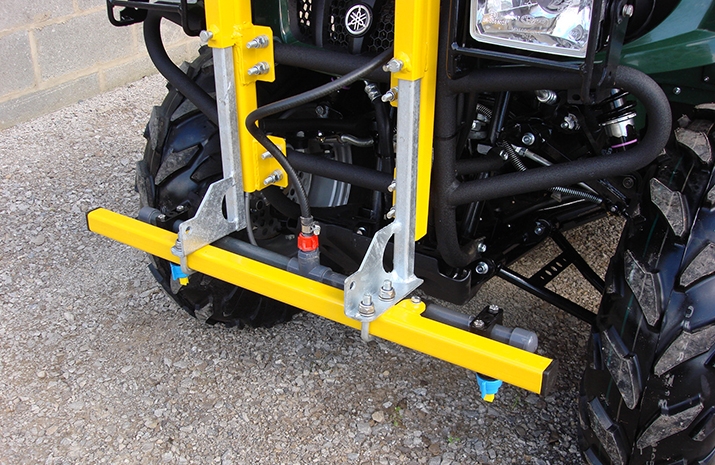

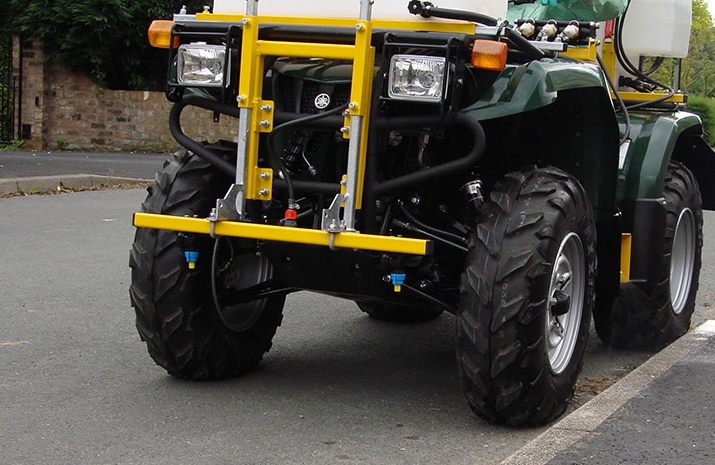

Two nozzle front boom with individual nozzle isolation

Very low drift nozzle technology, all nozzles are of an air inclusion design

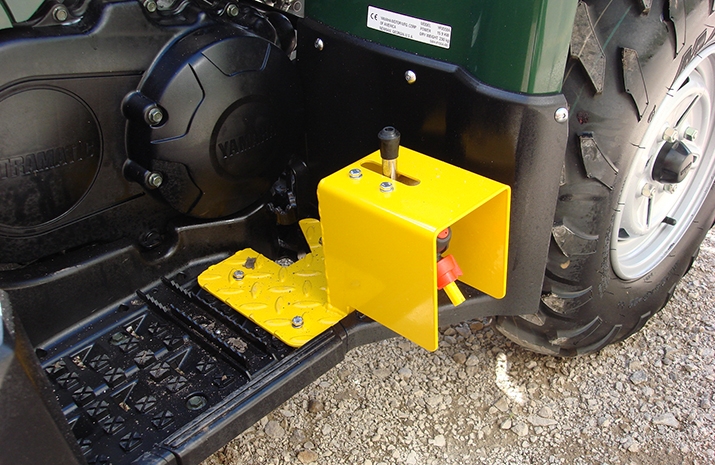

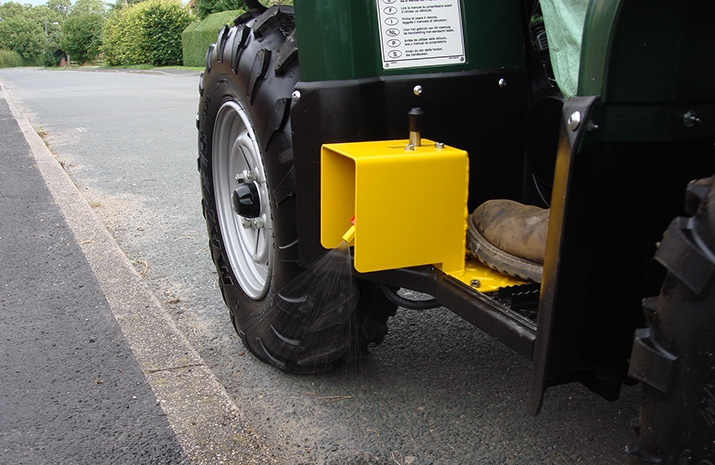

Two foot rest nozzles with off centre very low drift nozzles, angle of spray can be adjusted by driver on seat – mounted within the width of the quad bike

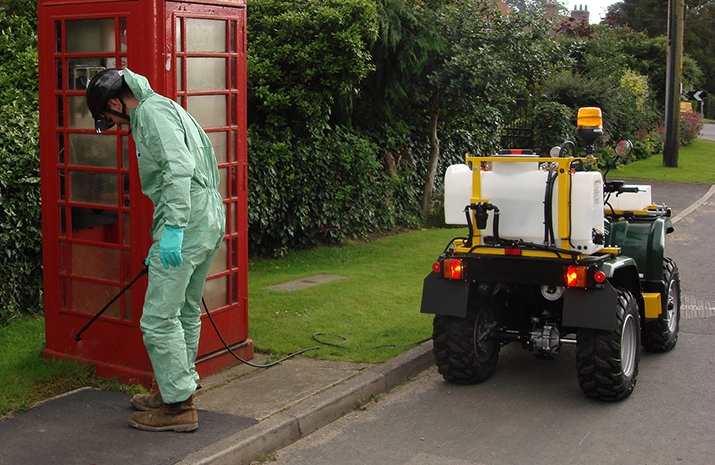

Telescopic hand lance and 5m hose

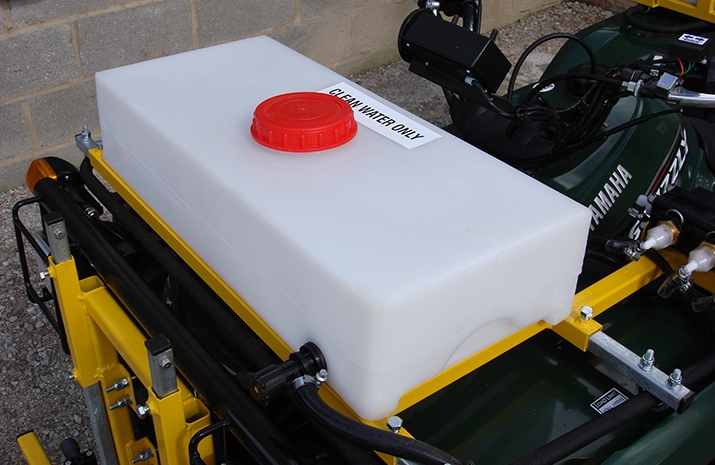

Front clean water tank with 22 litre capacity (mandatory requirement)

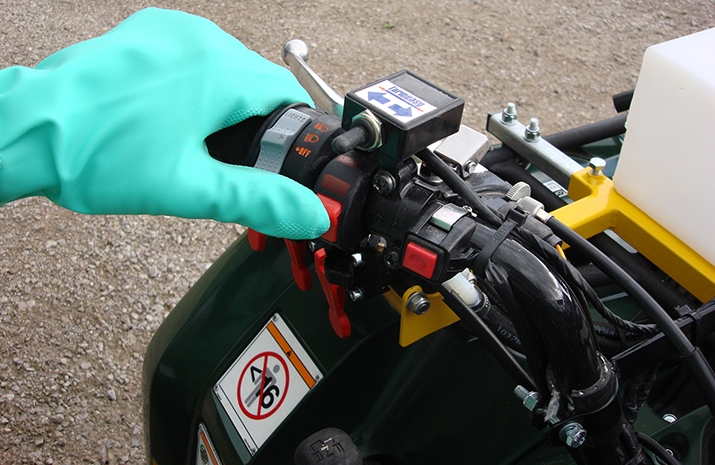

Handlebar mounted on/off switch for hands on the handlebar control of spray

Compliant with EN ISO 4254 and CE marked
