VALE Engineering’s versatile VALE DM800 Demount Salt Spreader (Gritter) is supplied with a demount chassis for simple mounting onto a suitable flatbed or pickup type vehicle. It is capable of spreading wet or dry, brown or white salt, via its unique POZI-FEED stainless steel auger system whilst still maintaining a smooth salt flow even at low rates.
The spreading circuit is driven hydraulically via an on-board donkey key start engine, whilst the hopper of the Salt Spreader is designed to take approximately 1000kg of salt. This makes VALE Engineering’s VALE DM800 ideal for use with 1-ton bulk bags, which are easy and clean to store and make hopper filling simple and efficient.

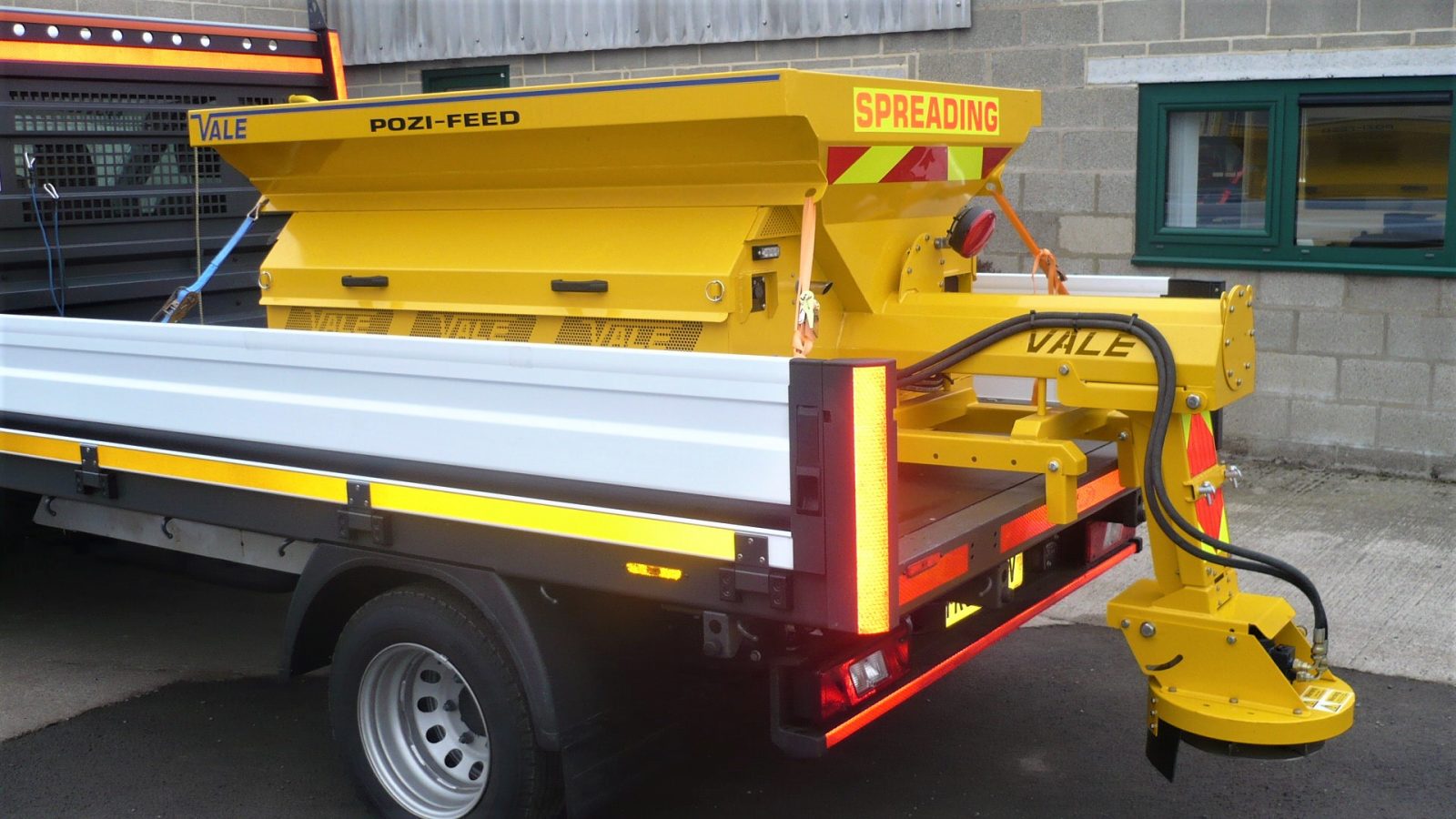

The VALE DM800 Gritter is designed for mounting onto a suitable flatbed or pickup type vehicle.

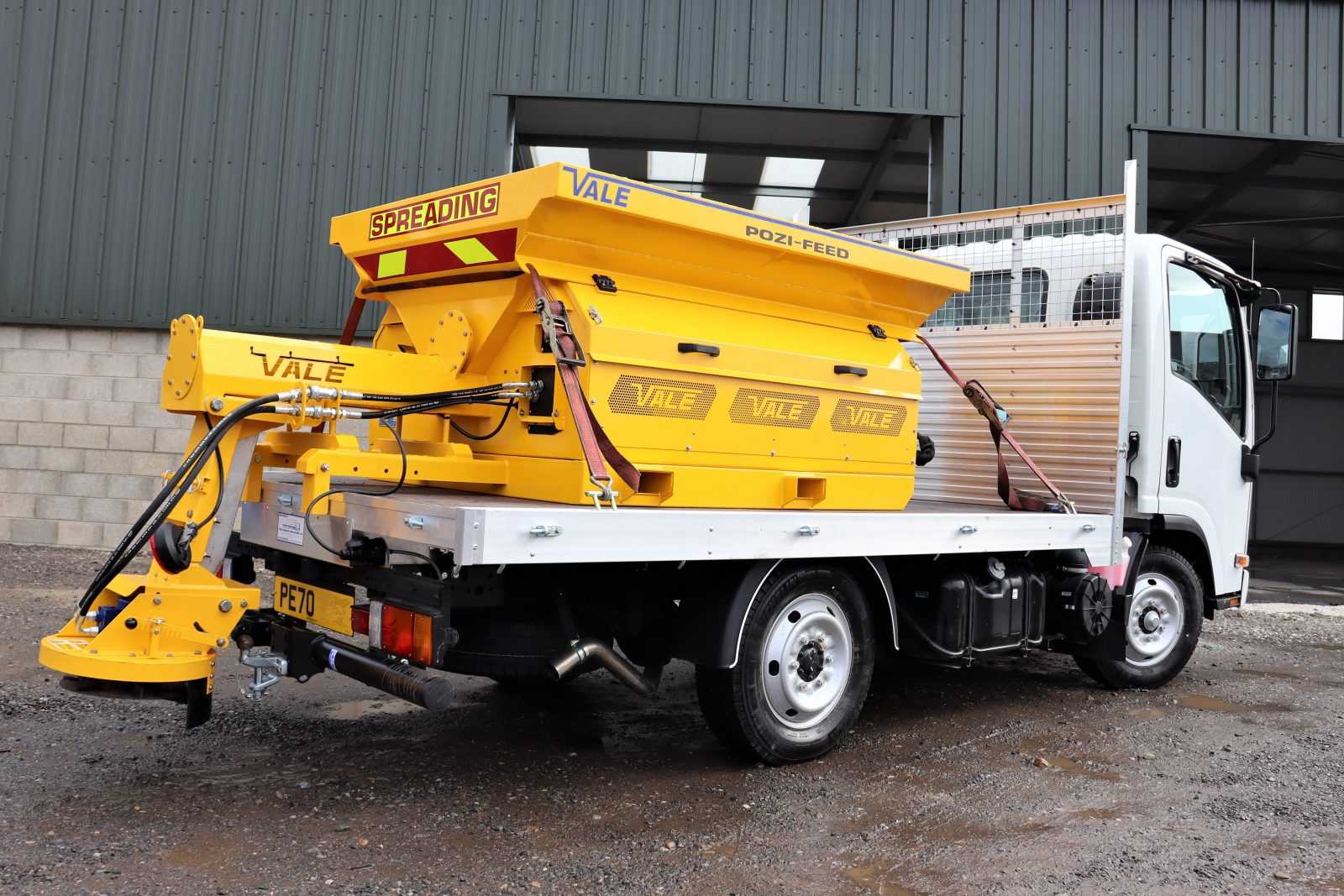

The DM800 from VALE is capable of spreading wet or dry, brown or white salt

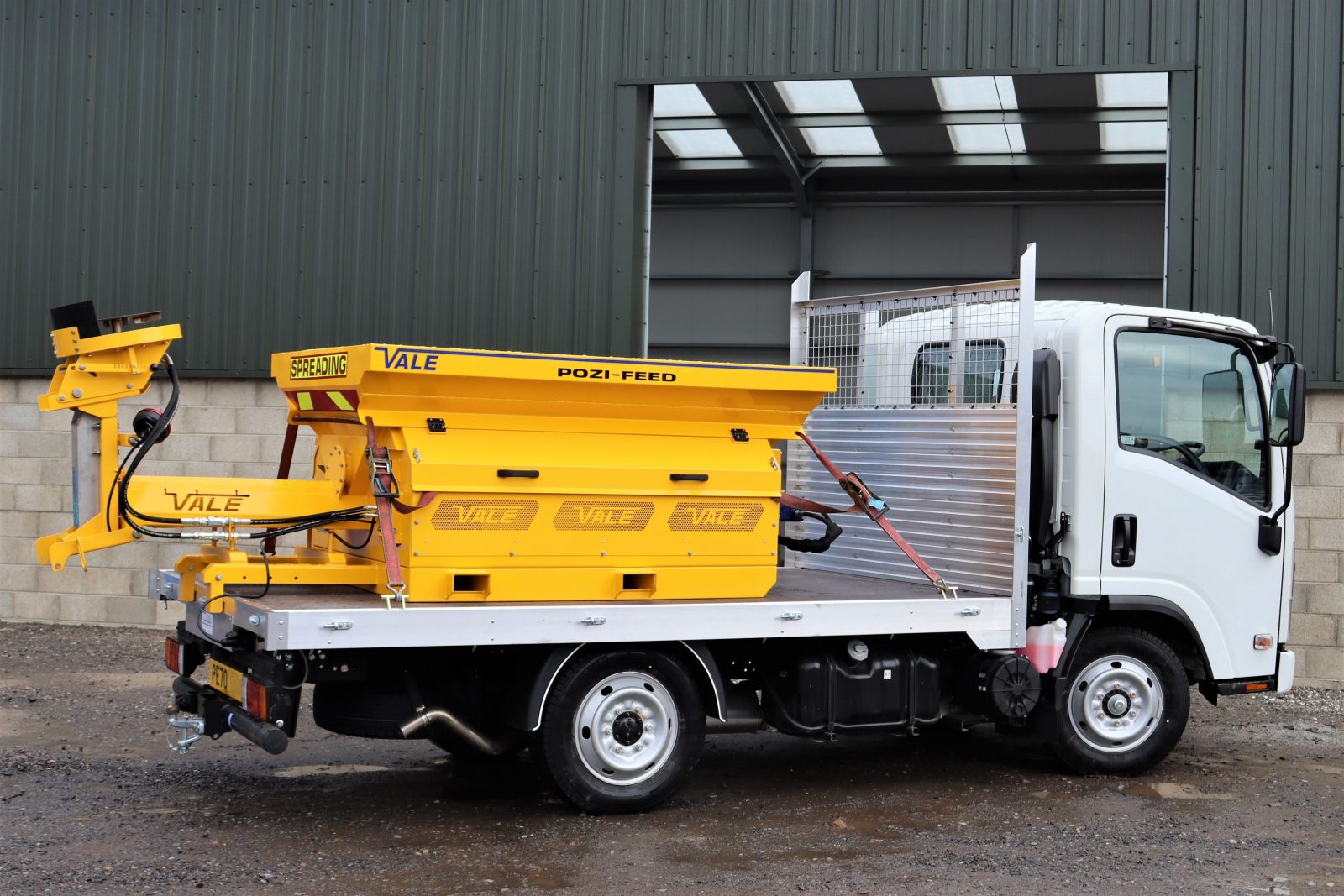

The versatile VALE DM800 Demount Salt Spreader, seen here in the up position

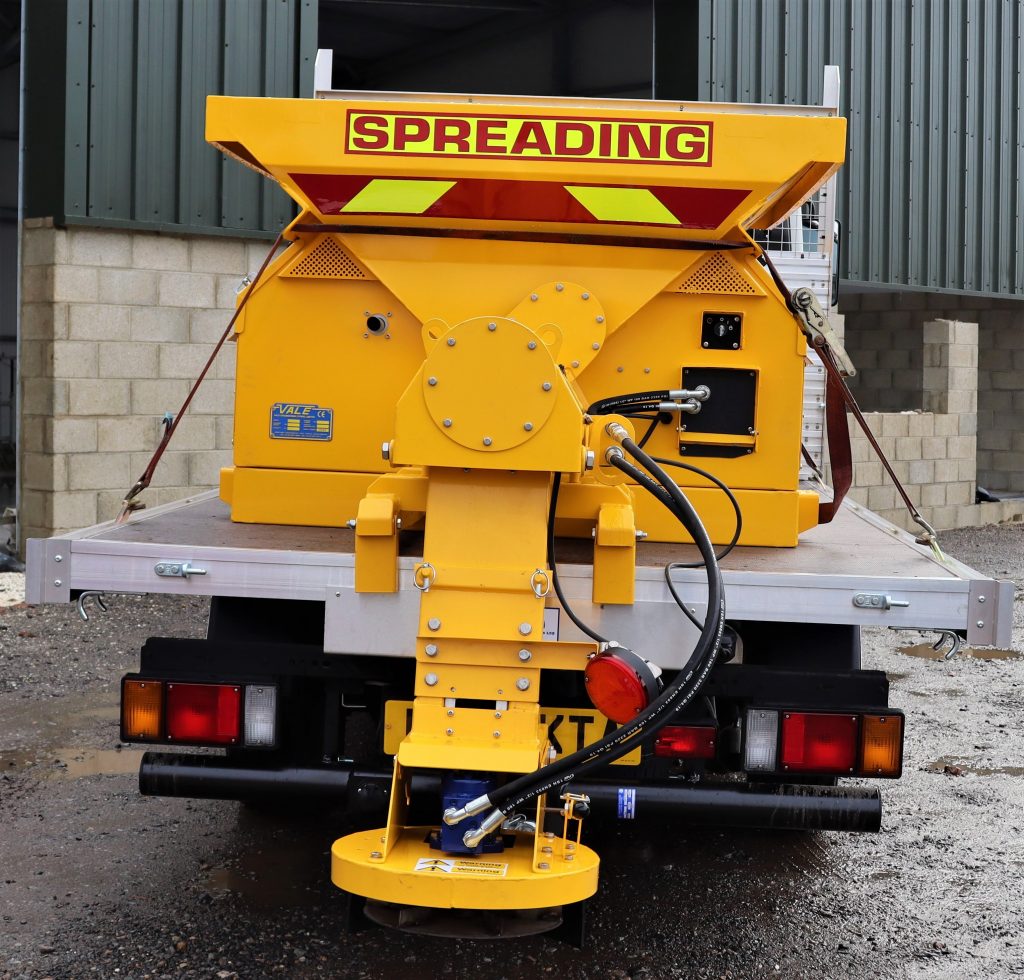

Rear view of the VALE DM800 Demount Salt Spreader ready for gritting
VALE Engineering’s versatile DM800 Demount Salt Spreader (Gritter) is supplied with a demount chassis for simple mounting onto a suitable flatbed or pickup type vehicle.
⦁ 0.8m³ mild steel hopper
⦁ Hydraulically driven stainless steel disc, with adjustable spread width from 1.8m to 8m
⦁ Manually adjustable spread width valve (graduated)
⦁ Symmetric and asymmetric patterns achievable using a manually adjustable chute
⦁ 150mm stainless steel POZI-FEED double augers providing positive salt feed even with wet material, driven hydraulically through a heavy-duty high load hydraulic motor
⦁ POZI-FEED augers run in maintenance free nylon bushes
⦁ Manually adjustable application rate valve (graduated)
⦁ 60 litre hydraulic tank with canister type spin-on return line filter, breather cap and sight gauge
⦁ Hydraulically powered from an on-board key start/stop Yanmar L70N auxiliary engine with battery
⦁ In-cab control box to control including: Spreading disc/auger on-off; auger on-off; auger reverse; beacon; and work light
⦁ Demount chassis with fork pockets to enable to spreader to be easily and safely mounted
⦁ Tie down lashing points to secure fitment to the load bed
⦁ Fold down chute
⦁ Flat mesh lid
⦁ All metal work blast cleaned, prior to zinc rich powder prime and finished in polyester powder coat finish
⦁ Stainless steel fasteners used where possible
⦁ Fluorescent markings on the rear
⦁ Wiring to enable: spreading action to be controlled via the vehicle’s fog light switch meaning no control boxes are required to be wired to the vehicle; and a separate auger reverse switch and beacon switch mounted on the spreader control panel. An LED work light cannot be fitted with this option. The vehicle needs to be fitted with a rear mount lighting socket
⦁ Width/Application: in-cab control box to control the following: spreading disc/auger on-off; auger on-off; auger reverse; beacon; work light; spreading width control in lieu of manually adjustable spread width valve; and application rate control in lieu of manually adjustable application rate valve
⦁ Rear mounted xenon low current beacon
⦁ Rear mounted LED work-light (red). Only available if the machine is specified with a control box
⦁ High speed spreading disc to spread up to 15m
⦁ On-board key start Honda GX270 petrol auxiliary engine with battery in lieu of the diesel Yanmar engine
